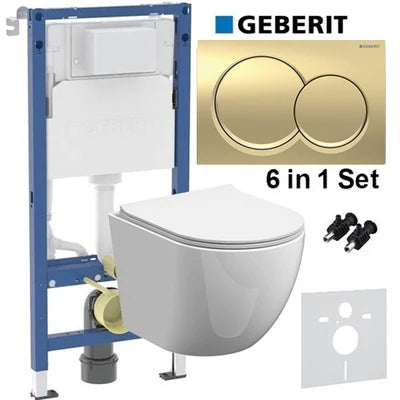

Anas Magna Rimless Pan With Geberit Duofix Alpha01 Wc Frame Brass Round Flush Plate 458.039.00.2 + 115.035.QE.1 + 1211-11

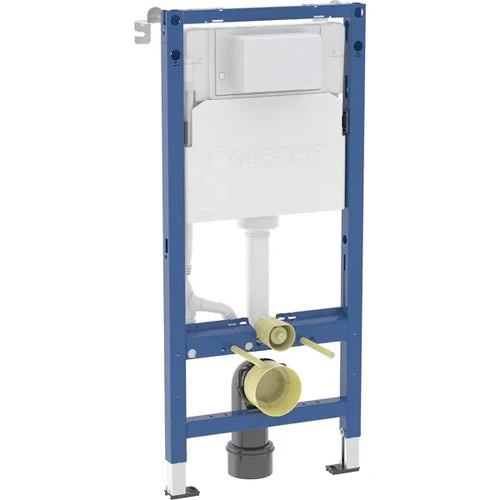

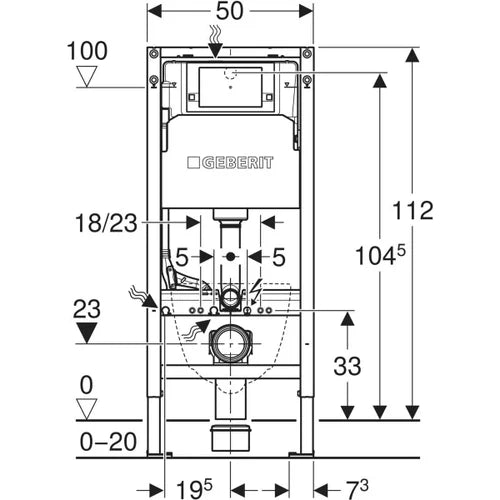

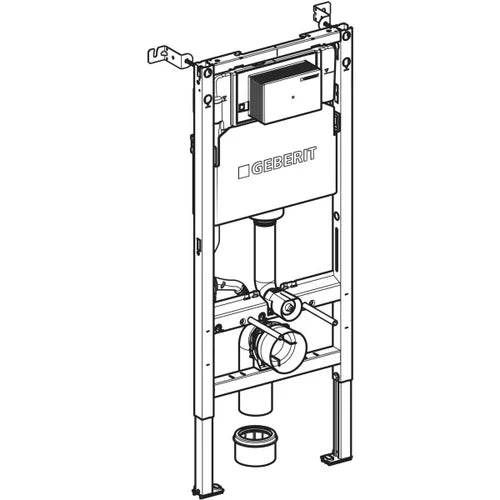

Geberit Alpha Wc Frame Concealed Cistern with Brackets

Technical data

Flow pressure: 0.1-10 bar

Operating temperature, water max: 25 °C

Flush volume, factory setting: 5.8 / 3 l

Flush volume small, adjustment range: 3–4 l

Application purposes

For metal and woods frame walls

For installation in part or room height prewalls

For installation in room height partition walls

For floor construction 0-20cm

Characteristics

Statically self-supporting frame, protected against corrosion with powder coating

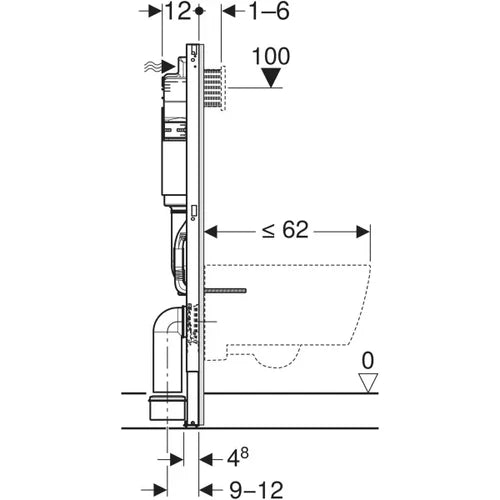

Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

Alternative fastening point for wall anchors

Foot plates made of plastic

Foot plate depth suitable for installation in U-profiles UW 50

Galvanised leg supports protected against corrosion

Connection bend can be mounted without tools

Geberit Alpha concealed cistern 12 cm fully insulated against condensation

Cistern fulfils standard requirements in accordance with EN 14055, Class II

For front actuation, suitable for dual flush

Immediate post flush possible with factory setting

Water supply connection on the rear or top centre

Protection box for service opening, can be cut to length, protects against moisture and dirt

With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

Fastening option for electrical connection

Scope of delivery

Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

Protection box for service opening

2 wall anchors

2 fixing brackets

Connection set for WC, ø 90 mm

Connection bend 90° made of PE-HD, ø 90 mm

Adaptor socket made of PE-HD, ø 90 / 110 mm

Fastening and protection material

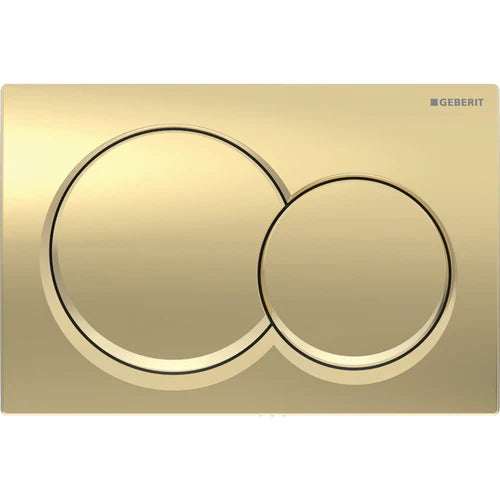

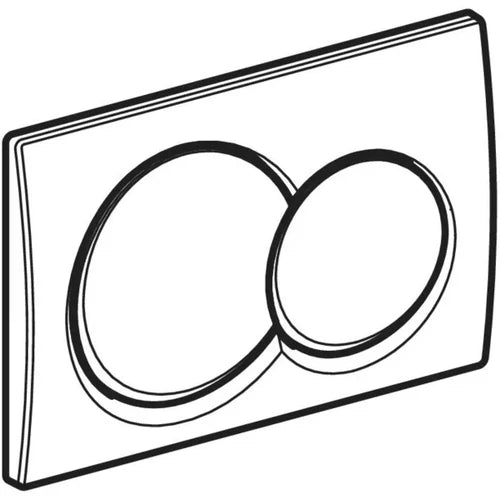

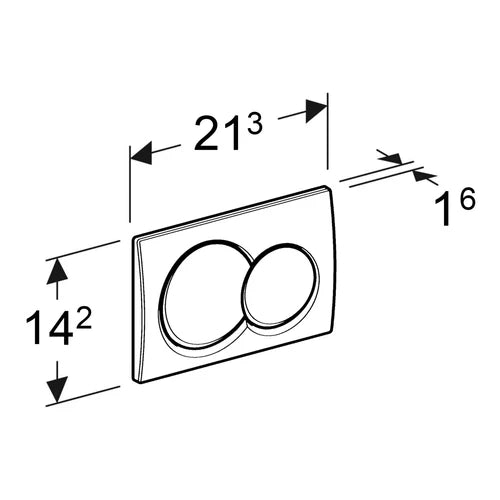

Geberit Alpha flush plate

Actuation force max – 20 N

Button shape – round

For flush actuation with Alpha concealed cisterns only

Top/front actuation

2 actuator rods

Fastening material

Acoustic mat

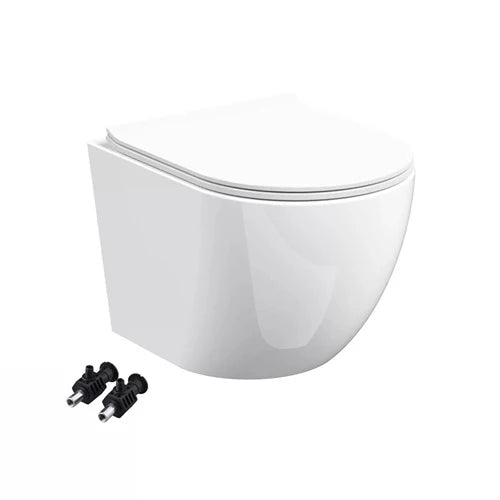

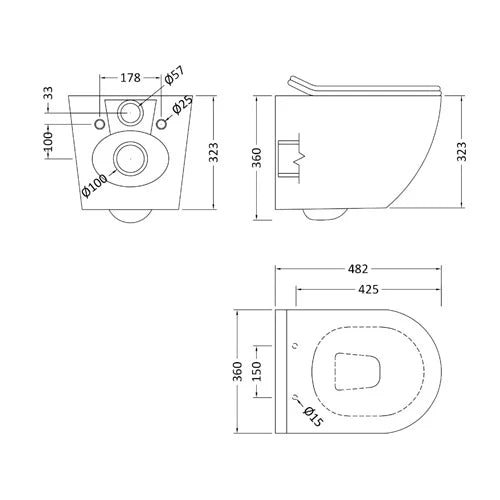

Anas Magna Rimless Wall-hung Toilet Pan & Soft Close Seat ( NOT GEBERIT ):

The toilet Pan Includes Quick release soft close seat

Beautifully designed and produced to the highest standards

Manufactured from high-grade ceramic

Wall Hung toilet pan designed to maximize available space

It comes in an attractive white finish for universal appeal

Extremely easy to install and use

Toilet seat supplied with two years of guarantees from the manufacturer

Short projection 490mm
